Tooling & Control

TinyMQ ships two first-class control interfaces: an embedded web dashboard at /dashboard and a native CLI binary called tmq. Both connect to the broker over HTTP and require no special authentication.

The Interactive Dashboard​

Visit http://localhost:7800/dashboard in any browser while the broker is running to access the interactive web interface.

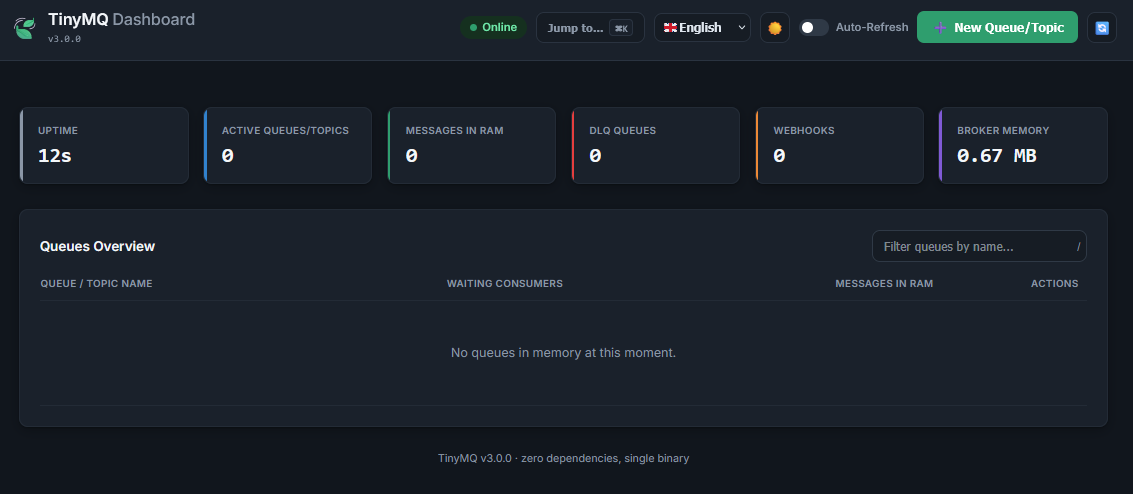

TinyMQ Dashboard

Dashboard Capabilities​

  • Auto-Refresh mode (automatically reloads every 3s).
  • Uptime and memory footprint monitoring.
  • Visual indicators for Active Webhooks and Dead Letter Queues (DLQ).
  • Manual topic creation UI.
  • Real-time waiting consumers tracking.
  • Dark mode support (full data-theme CSS theming).
  • Cluster Topology Map: Dynamically visualizes the Raft cluster, showing Leader status and live node health across the swarm.
  • Embedded Publisher: Publish messages directly from the UI, supporting Priority, TTL, and Delay inputs.
  • Internationalization: Switch between 🇬🇧 English and 🇪🇸 Spanish directly in the UI.
  • Command Palette (Ctrl+K / Cmd+K) — search queues and fire quick actions (Publish, Consume, Tail) from a floating dialog.
  • Sortable columns — click any column header (Queue Name, Messages, Consumers) to sort ascending/descending.
  • Skeleton loaders — animated placeholders during initial data load.
  • JSON syntax highlighting in peek/consume output modals.
  • / shortcut — press / anywhere to instantly focus the queue search/filter input.

The dashboard renders a live metrics grid and a sortable topic table. All logic runs in Vanilla JS — no React, no Vue, no bundle size tax.

Metrics Grid:

CardDescription
UptimeHow long the broker process has been running
Active Queues/TopicsTotal number of topics with at least one message or waiting consumer
Messages in RAMTotal messages held across all queues
WebhooksTotal registered webhook endpoints
Broker MemoryGo runtime runtime.MemStats.Alloc — actual heap in use

Topic Table Columns:

ColumnDescription
Queue / Topic NameTopic identifier. DLQ topics shown with a red DLQ badge; webhook-enabled topics with an orange Webhook badge
Waiting ConsumersNumber of long-polling consumers currently blocking on this topic
Messages in RAMCurrent message count in the queue
ActionsInline buttons: Publish, Consume (Pop), 👁️ Peek, Purge, Delete

Auto-Refresh​

Toggle Auto-Refresh in the top control bar. When enabled, the page reloads every 3 seconds. The setting is persisted in localStorage so it survives page reloads.

Auto-Refresh pauses automatically when any modal (Publish, Consume, Peek) is open to prevent the page from refreshing while you're reading output.

Queue Management Actions​

You can interact directly with the queues via the dashboard:

  • Publish: Send a payload (supports TTL, Delay, Priority, Broadcast). Uses POST /api/queues/publish.
  • Consume (Pop): Immediately dequeue a message. Uses GET /api/queues/consume.
  • Peek: View up to 10 messages without dequeuing them.
  • Tail: Live tail a topic using SSE.
  • Purge: Empty a queue of all messages.
  • Delete: Permanently delete the queue and its WAL file.
  • Webhooks: View and manage webhooks attached to the topic.

The tmq CLI​

tmq is a terminal-based control panel for TinyMQ. It connects to the broker over HTTP and presents colored, tabwriter-aligned output.

Installation​

Download from GitHub Releases or install via Go:

go install github.com/x-name15/tinymq/cmd/tmq@latest

Configuration​

Set TINYMQ_URL to point at a non-local broker:

export TINYMQ_URL=http://192.168.1.100:7800

(Default is http://localhost:7800)

If your broker requires authentication, export the API key:

export TINYMQ_API_KEY=your_secret_key

Command Reference​

tmq status / tmq list​

Displays a formatted table of all active topics, their message counts, waiting consumer count, type, and webhook status.

tmq status

tmq pub — Publish a Message​

# Basic publish
tmq pub orders.eu '{"user_id": 42, "item": "laptop"}'

# With TTL (expire in 5 minutes)
tmq pub orders.eu '{"user_id": 42}' --ttl=5m

# With delivery delay
tmq pub notifications '{"msg": "hello"}' --delay=10s

# Broadcast to all waiting consumers
tmq pub cache.invalidate '{"entity": "product"}' --broadcast

tmq sub — Consume Messages​

# Consume one message (auto-acknowledged)
tmq sub orders.eu

# Wait up to 10s for a message if queue is empty (long-polling)
tmq sub orders.eu --timeout=10s

# Consume a batch of 5 messages
tmq sub orders.eu --limit=5

# Consume without auto-acknowledging (manual ACK required)
tmq sub orders.eu --auto-ack=false

tmq peek — Inspect RAM (Non-Destructive)​

Reads messages from the queue without removing them. Safe for debugging.

tmq peek orders.eu --limit=3

tmq tail — Live Spy Mode​

Continuously streams messages from a topic in real-time (using SSE). Each message is printed as it arrives. Press Ctrl+C to exit. Auto-reconnects on failure.

tmq tail orders.eu

tmq top — Live Terminal Dashboard​

Opens an interactive, auto-refreshing dashboard right in your terminal. It clears the screen and updates the queue list every 2 seconds.

tmq top

tmq shell — Interactive REPL​

Starts an interactive session where you can run tmq commands without typing the tmq prefix.

tmq shell
> status
> peek orders
> exit

tmq rm / tmq delete​

Deletes a queue entirely via the API.

tmq rm orders.eu

tmq purge​

Empties all messages from a queue but leaves the queue intact.

tmq purge orders.eu

tmq group​

Manage Consumer Groups for Pub/Sub messaging without message stealing. This can be used both as a top-level command and within tmq shell.

# Create a consumer group on a topic
tmq group create orders.eu workers

# List all groups for a topic
tmq group list orders.eu

tmq create — Provision a Topic​

Explicitly provisions a queue via POST /api/topics. Useful for pre-configuring topics with specific policies before the first message arrives.

# Create a topic with default settings
tmq create analytics.events

# Create with overflow policy and 24h auto-expiry on all messages
tmq create sensor.data --policy=drop-oldest --retention=24h

tmq cluster​

Diagnose and view peer status when running TinyMQ in High Availability mode.

# View current node's cluster role and term
tmq cluster status

# List all known peers and their health
tmq cluster peers

# Continuously refresh peer table every 2 seconds
tmq cluster peers --watch

# Gracefully drain a node before maintenance (restarts, config changes)
# Note: always specify the target URL explicitly to avoid draining the wrong node
tmq cluster drain http://node-2:7800

tmq webhook​

Manage webhooks for a specific topic.

# List webhooks
tmq webhook list orders.eu

# Add a webhook
tmq webhook add orders.eu https://my-api.com/hook

tmq bench — Stress Testing​

Run a high-concurrency benchmark against the broker.

tmq bench --protocol=http --total=10000 --concurrency=50 --target=orders

Supported protocols: http, nats.

tmq backup & tmq restore​

Backup and restore the broker's WAL data files directly from the CLI.

# Create a backup archive (zip or tar.gz)
tmq backup my_backup.zip

#### `tmq restore`

Restore the broker's WAL data files from an archive.

```bash
# Restore from an archive
tmq restore --file=my_backup.zip --data-dir=./data

tmq dlq redrive​

Redrive all dead-lettered messages from a topic's DLQ (<topic>.dlq) back to the main topic queue, resetting their retry counters.

tmq dlq redrive orders.eu

tmq doctor​

Run local sanity checks on the data directory, ports, environment variables, and broker reachability to diagnose configuration issues.

tmq doctor

CLI Quick Reference​

tmq status
tmq top
tmq shell
tmq doctor
tmq create <topic> [--policy=reject|drop-oldest] [--retention=duration]
tmq pub <topic> <payload> [--ttl=duration] [--delay=duration] [--broadcast]
tmq sub <topic> [--timeout=duration] [--limit=count] [--auto-ack=true/false]
tmq peek <topic> [--limit=count]
tmq tail <topic>
tmq rm <topic>
tmq purge <topic>
tmq group list <topic>
tmq group create <topic> <group>
tmq dlq redrive <topic>
tmq cluster status
tmq cluster peers [--watch]
tmq cluster drain <node-url>
tmq webhook list <topic>
tmq webhook add <topic> <url>
tmq bench [--protocol=http|nats] [--total=10000] [--concurrency=50] [--target=<ip:port>]
tmq backup <filename>
tmq restore --file=<archive> --data-dir=<path>
